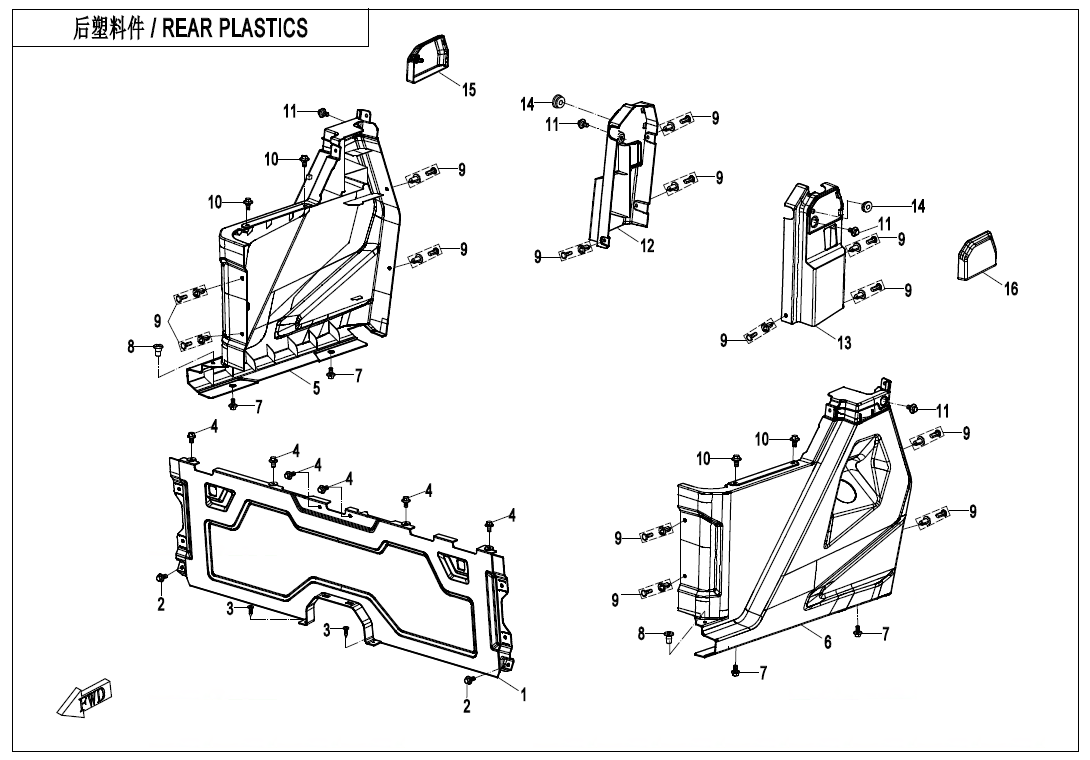

REAR PLASTICS - F04-5-V2 | 2023, UTV, CF1000UU-2 | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

1

P/N (SKU): 5HY#-043061-1000-11

Part Name: FRONT LOWER BAFFLE, SEAT

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Price: 46,00 € : 46,00 €

2

P/N (SKU): 30006-060016810

Part Name: HEXAGON FLANGE BOLTS

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Specification: M6Ã16

Price: 1,50 € : 1,50 €

3

P/N (SKU): 30110-480160010

Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Specification: ST4.

Price: 1,50 € : 1,50 €

4

P/N (SKU): 6NQ#-000206-6001

Part Name: INNER HEX SCREW M6x16

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Specification: M6x16

Price: 1,50 € : 1,50 €

5

P/N (SKU): 5HY0-042024

Part Name: REAR RH SIDE PANEL

Effective: 2022-10-17

Alternative parts: 5HYV-042024-1C00

Price: 53,00 € : 53,00 €

5

P/N (SKU): 5HYV-042024-1C00

Part Name: REAR RH PANEL

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Specification: null

Price: 60,00 € : 60,00 €

6

P/N (SKU): 5HY0-042023

Part Name: REAR LH PANEL

Effective: 2022-10-17

Alternative parts: 5HYV-042023-1C00

Price: 55,00 € : 55,00 €

6

P/N (SKU): 5HYV-042023-1C00

Part Name: REAR LH PANEL

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Specification: null

Price: 63,00 € : 63,00 €

7

P/N (SKU): 5HY0-220113

Part Name: BOLT M8x20

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Specification: M8x20

Price: 2,00 € : 2,00 €

8

P/N (SKU): 6NQ#-000202-6001

Part Name: CONVEX BOLT

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Price: 2,00 € : 2,00 €

9

P/N (SKU): 9060-040310

Part Name: CLAMP ASSY

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Price: 2,00 € : 2,00 €

10

P/N (SKU): 6NQ#-000203-6001

Part Name: INNER HEX SCREW M6x20

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Specification: M6x20

Price: 1,50 € : 1,50 €

11

P/N (SKU): 5HY#-040001-1000

Part Name: BOLT M6x14

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Price: 1,50 € : 1,50 €

12

P/N (SKU): 5HY#-042022-6000-10

Part Name: REAR RH UPPER SIDE PANEL

Effective: 2022-10-17

Remarks: null

Alternative parts: 5HYV-042022-1D00

Price: 13,00 € : 13,00 €

13

P/N (SKU): 5HY#-042021-6000-10

Part Name: REAR UPPER LH PANEL

Effective: 2022-10-17

Remarks: null

Alternative parts: 5HYV-042021-1D00

Price: 13,00 € : 13,00 €

14

P/N (SKU): 5BY0-040010

Part Name: RUBBER SLEEVE

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Price: 2,00 € : 2,00 €

15

P/N (SKU): 5HY0-042026

Part Name: MOUNT COVER, RH HINGE

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Price: 2,50 € : 2,50 €

16

P/N (SKU): 5HY0-042025

Part Name: MOUNT COVER, LH HINGE

Effective: 2022-10-17

Remarks: null

Alternative parts: null

Price: 2,50 € : 2,50 €
