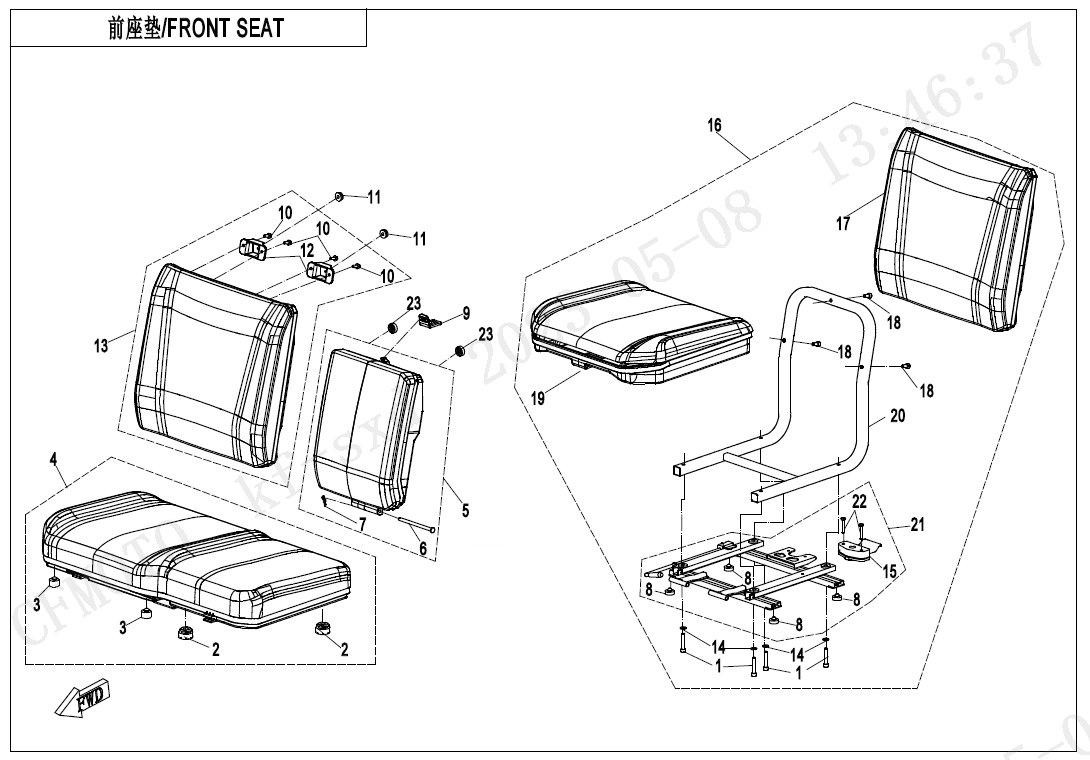

FRONT SEAT(NON HEATING EQUIPMENT) - F13-1-A-V2

FRONT SEAT(NON HEATING EQUIPMENT) - F13-1-A-V2

No.

01
P/N (SKU): 30102-080045170
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
02
P/N (SKU): 7020-130001
Part Name: SEAT LOCATING RUBBER SLEEVE
Effective: 2023-12-11
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
03
P/N (SKU): 5HY0-132004
Part Name: RUBBER DAMPER
Effective: 2023-12-11
Alternative parts: null
Price: 3,00 € : 3,00 €
04
P/N (SKU): 5HYV-132000-1700
Part Name: PASSENGER SEAT
Effective: 2023-12-11
Alternative parts: null
Specification: null
Price: 96,30 € : 96,30 €
05
P/N (SKU): 5HYV-134000-1700
Part Name: MIDDLE BACKREST ASSY
Effective: 2023-12-11
Alternative parts: null
Specification: null
Price: 39,61 € : 39,61 €
06
P/N (SKU): 5HYV-134000-1700-24
Part Name: PIN SHAFT
Effective: 2023-12-11
Alternative parts: null
Specification: null
Price: 1,80 € : 1,80 €
07
P/N (SKU): 5HYV-134000-1700-23
Part Name: PIN SHAFT
Effective: 2023-12-11
Alternative parts: null
Specification: null
Price: 1,80 € : 1,80 €
08
P/N (SKU): 9030-131001
Part Name: RUBBER WASHER
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
09
P/N (SKU): 7020-140002
Part Name: TIE BAND, RACK COVER
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
10
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-12-11
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
11
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HYV-133000-1700-23
Part Name: REAR BRACKET
Effective: 2023-12-11
Alternative parts: null
Specification: null
Price: 2,80 € : 2,80 €
13
P/N (SKU): 5HYV-133000-1700
Part Name: PASSENGER BACKREST ASSY
Effective: 2023-12-11
Alternative parts: null
Specification: null
Price: 71,99 € : 71,99 €
14
P/N (SKU): 30306-080870
Part Name: PLAIN WASHERS
Effective: 2023-12-11
Remarks: null
Alternative parts: 30306-080112
Price: 1,50 € : 1,50 €
15
P/N (SKU): 5HY0-131140
Part Name: SEAT LOCK
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 47,00 € : 47,00 €
16
P/N (SKU): 5HYV-131000-1700
Part Name: DRIVER SEAT ASSY
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Specification: null
Price: 140,50 € : 140,50 €
17
P/N (SKU): 5HY0-131300-10000
Part Name: MAIN BACKREST
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Specification: null
Price: 139,00 € : 139,00 €
18
P/N (SKU): 30102-080016170
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Specification: M8x16
Price: 1,50 € : 1,50 €
19
P/N (SKU): 5HY0-131200-10000
Part Name: DRIVER SEAT ASSY
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 165,00 € : 165,00 €
20
P/N (SKU): 5HY0-131010
Part Name: SUPPORT
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 51,00 € : 51,00 €
21
P/N (SKU): 5HYV-131100-1700
Part Name: DRIVE SEAT FRAME ASSY
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Specification: null
Price: 40,80 € : 40,80 €
22
P/N (SKU): 30003-060035810
Part Name: HEXAGON HEAD BOLTS
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
23
P/N (SKU): 6KM0-130205
Part Name: CUSHION RUBBER WAHSER
Effective: 2023-12-11
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
