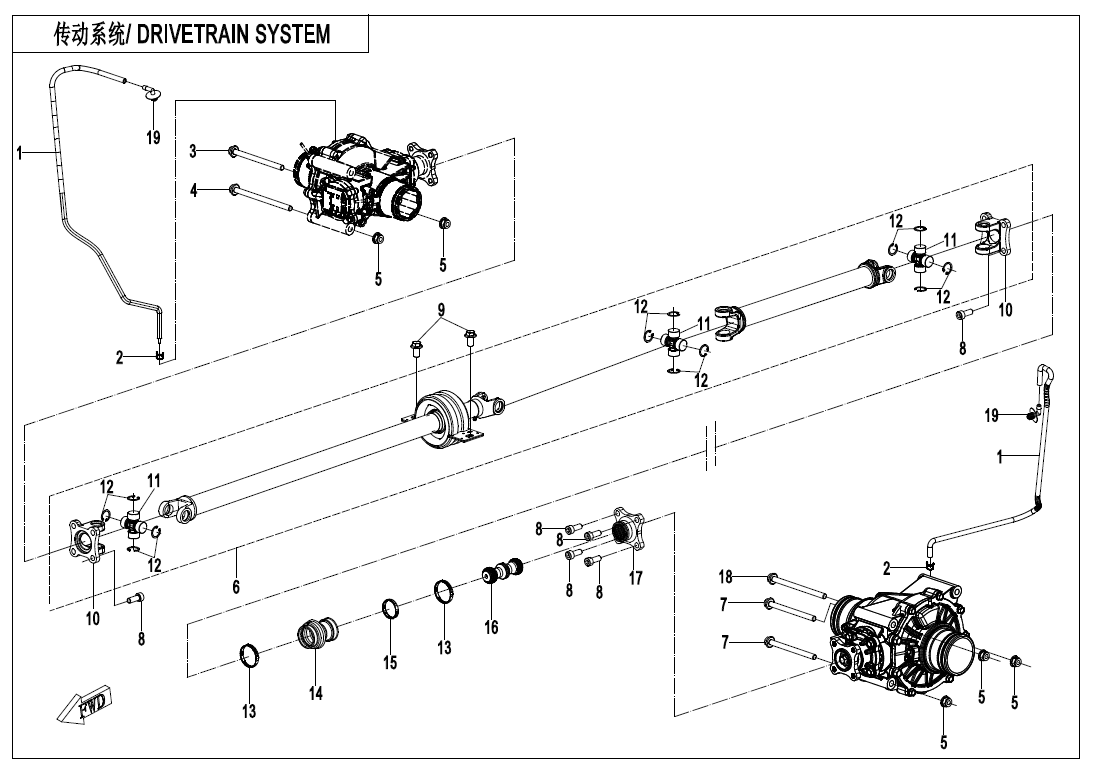

DRIVETRAIN SYSTEM - F30-V1

DRIVETRAIN SYSTEM - F30-V1

No.

1
P/N (SKU): 9010-310001
Part Name: FRONT GEAR CASE BREATHER HOSE
Effective: 2024-06-06
Remarks: null
Alternative parts: 9010-310001-1000
Price: 5,00 € : 5,00 €
-+
2
P/N (SKU): 30601-108010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: A8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
3
P/N (SKU): 30006-102130810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: M10x1.25x130@COLOR ZINC TRIVALENT CHROMIUM
Price: 4,00 € : 4,00 €
-+
4
P/N (SKU): 30001-102150110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: M10x1.25x150
Price: 3,50 € : 3,50 €
-+
5
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 5BYV-290100-6001
Part Name: FRONT DRIVE SHAFT
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: null
Price: 240,00 € : 240,00 €
7
P/N (SKU): 30006-102120810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: M10×1.25×120@COLOR ZINC TRIVALENT CHROMIUM
Price: 3,00 € : 3,00 €
-+
8
P/N (SKU): 30102-102025810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: M10x1.25x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 30006-102020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 9GQ0-290201
Part Name: FRONT CONNECTING FLANGE COUPLER
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Price: 15,00 € : 15,00 €
11
P/N (SKU): 9GQ0-290210
Part Name: CROSS SHAFT, UNIVERSAL JOINT
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Price: 20,00 € : 20,00 €
-+
12
P/N (SKU): 30800-02205
Part Name: CIRCLIPS FOR HOLES
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: 22
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9GQ0-290104
Part Name: BIG CLAMP
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
14
P/N (SKU): 5HY0-300102
Part Name: REAR DRIVE SHAFT SEAL BOOT
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 9CR6-300204
Part Name: SMALL CLAMP
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
16
P/N (SKU): 5HY0-300101
Part Name: REAR DRIVE SHAFT
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Price: 29,00 € : 29,00 €
17
P/N (SKU): 9CR6-300206-10000
Part Name: REAR GEAR CASE DRIVE SLEEVE
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Price: 61,00 € : 61,00 €
-+
18
P/N (SKU): 30006-102140810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: M10×1.25×140
Price: 3,00 € : 3,00 €
-+
19
P/N (SKU): 9AWV-315001-8000
Part Name: BREATHER HOSE CONNECTOR
Effective: 2024-06-06
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
