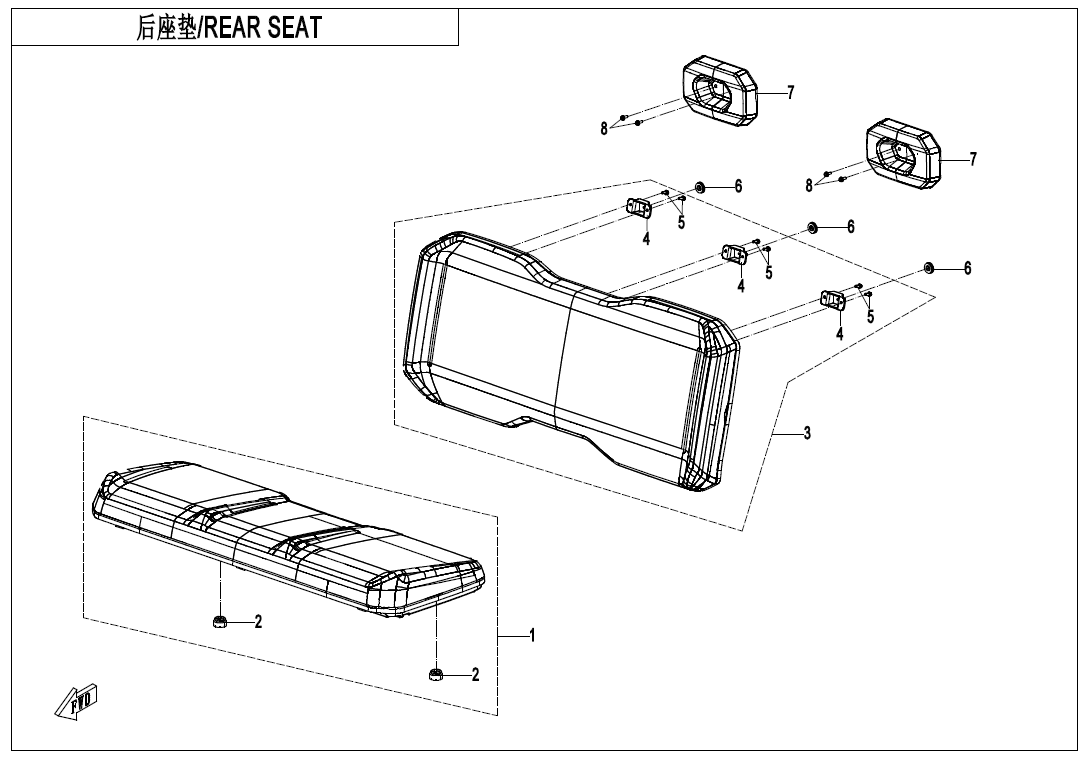

REAR SEAT - F13-2

REAR SEAT - F13-2

No.

1
P/N (SKU): 5KWV-134000-1001
Part Name: REAR SEAT ASSY
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Specification: null
Price: 124,50 € : 124,50 €
2
P/N (SKU): 7020-130001
Part Name: SEAT LOCATING RUBBER SLEEVE
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
3
P/N (SKU): 5KWV-135000-1001
Part Name: REAR BACKREST ASSY
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Specification: null
Price: 121,81 € : 121,81 €
4
P/N (SKU): 5HY#-133001-1000
Part Name: REAR BRACKET
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
5
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
6
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 5ASV-134000-6000
Part Name: HEAD REST
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Price: 66,00 € : 66,00 €
-+
8
P/N (SKU): 5HY#-040002-1000
Part Name: BOLT M6x17
Effective: 2025-04-28
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
